Description
| Product Code | ID-12 Plus | ||
| Approval | R10 | ||
| Working Temperature | -30°C~+70°C | ||
| Input Voltage | 12-24 VDC | ||
| Output Voltage | Same as Input voltage | ||

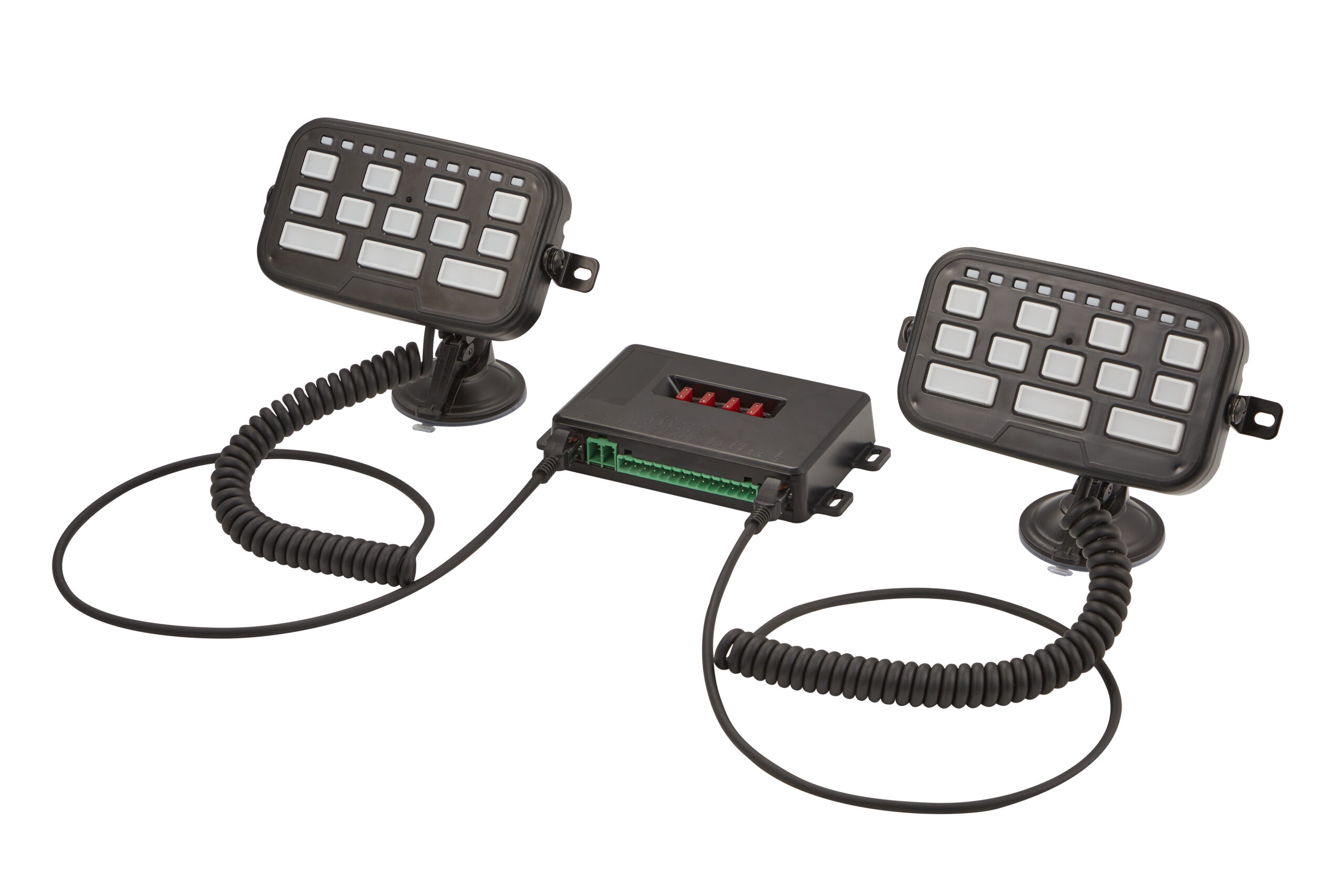

| Input I/O | Panel x2 Power x1 |
||
| Output I/O | SW1-3: | 10 amp at 12/24VDC | |
| SW4-6: | 10 amp at 12/24VDC (Shared) | ||
| SW7-11: | 0.2 amp for Signal | ||
| SW12: | Positive / Negative Common Trigger at 0.2 amp | ||

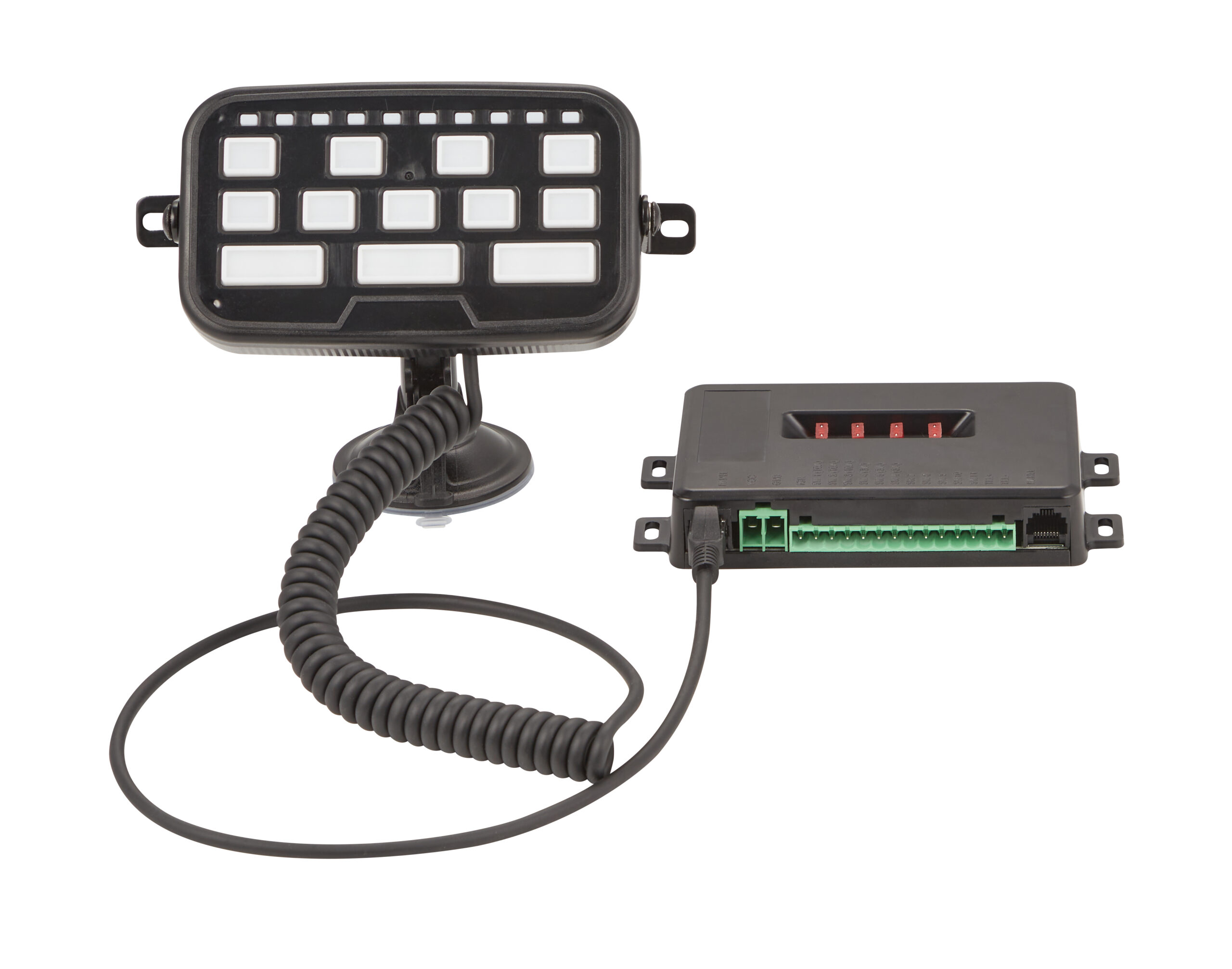

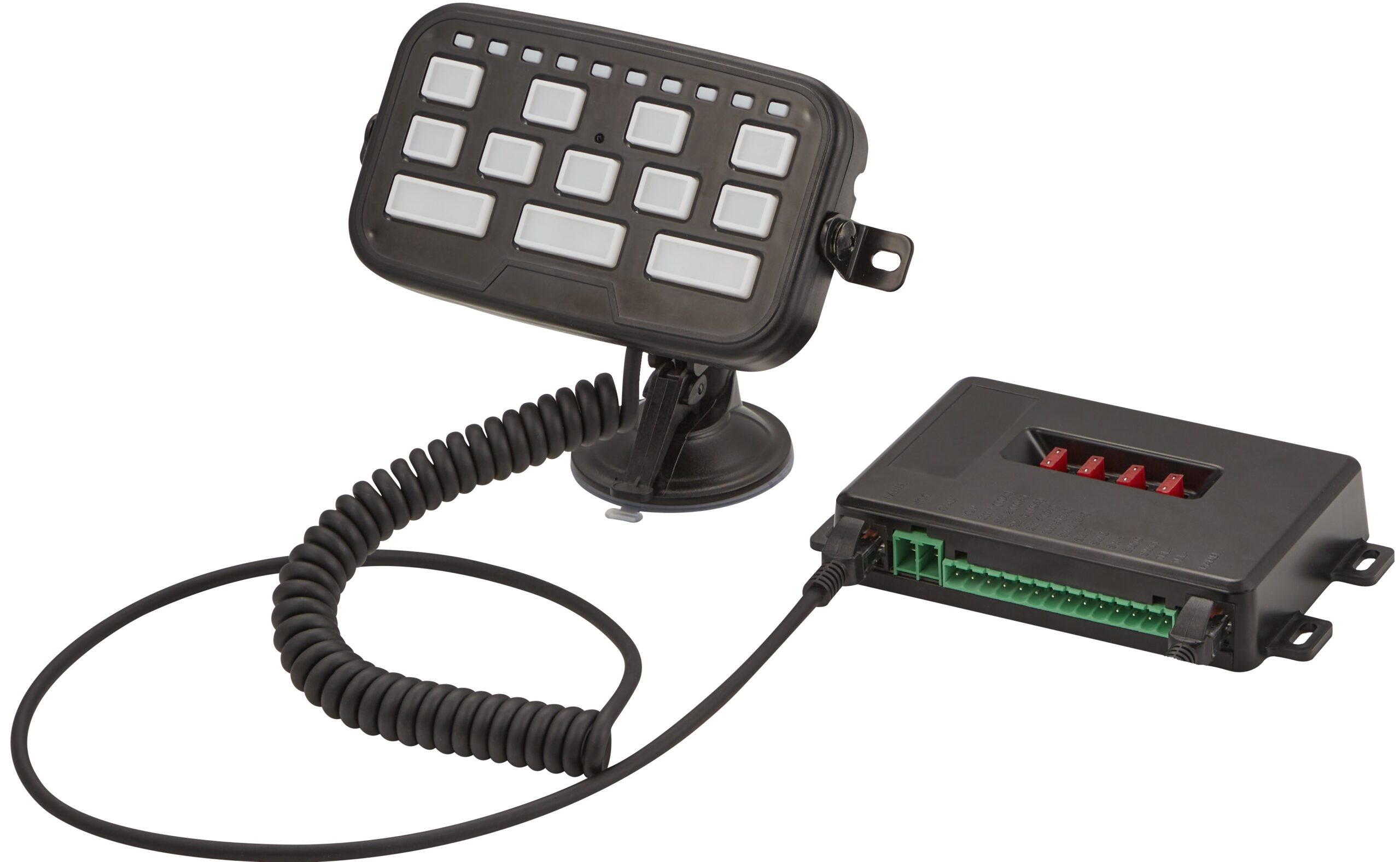

| Dimension | ID-12 (Controller): | 149.5mm x 88.2mm x 17.9mm | |
| FS-14P (Fuse Box): | 148mm x 92mm x 25mm | ||
